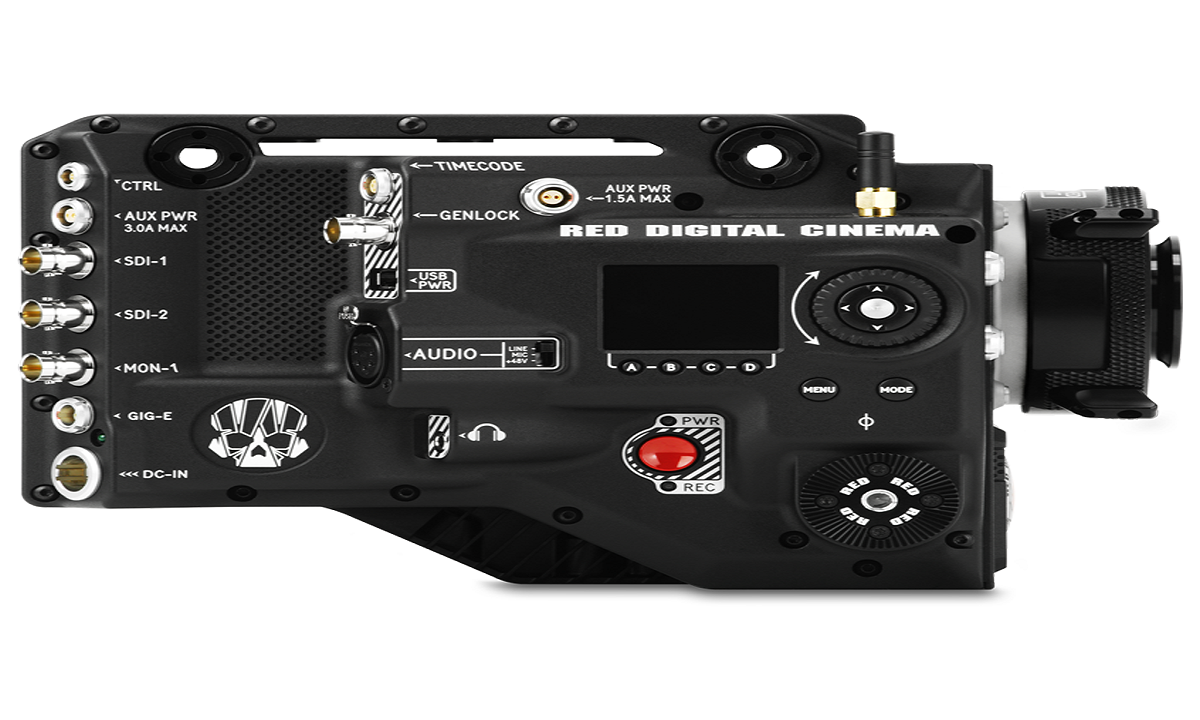

Red Ranger Monstro 8K

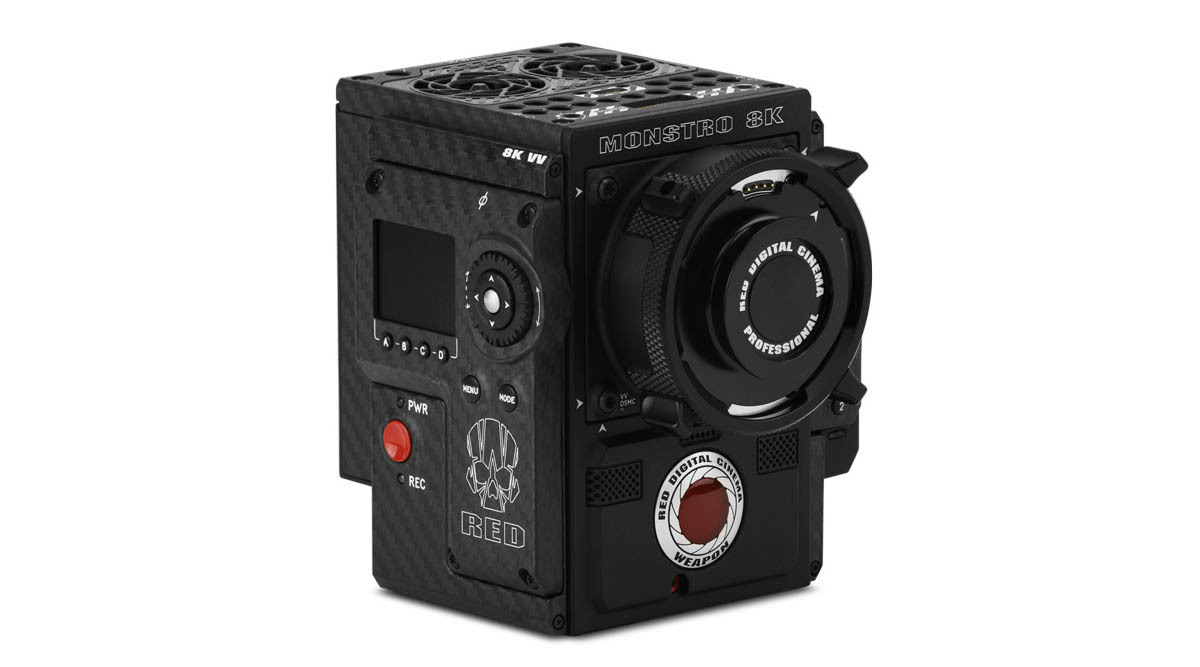

Red Weapon Monstro 8K

35.4 Megapixel CMOS Sensor
40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
8K resolution in a Super 35 format

Product Red Weapon Helium 8K
SENSOR MONSTRO 35.4 Megapixel CMOS
PIXEL ARRAY 8192 x 4320
SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
MAX FRAME RATES 60 fps at 8K Full Format (8192 x 4320), 75 fps at 8K 2.4:1 (8192 x 3456)
60 fps at 7K Full Format (7168 x 3780), 75 fps at 7K 2.4:1 (7168 x 3024)
75 fps at 6K Full Format (6144 x 3240), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
REDCODE RAW ACQUISITION FORMATS 8K Full Format (8192 × 4320), 2:1, 2.4:1, 16:9, 14:9, 8:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
7K Full Format (7168 × 3780), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
6K Full Format (6144 × 3240), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
5K Full Format (5120 × 2700), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 × 2160), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, 1:1, and Ana 2x, 1.3x
3K Full Format (3072 × 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 × 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
APPLE PRORES ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 29.97 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps
AVID CODECS 3 DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps
WEIGHT 3.35 lbs (BRAIN with Integrated Media Bay)




RED Weapon Dragon 6K

SENSOR TYPE RED DRAGON 19.4 Megapixel CMOS
EFFECTIVE PIXELS 6144 x 3160
SENSOR SIZE 30.7 mm x 15.8 mm (Diagonal: 34.5 mm)
DYNAMIC RANGE 16.5+ stops


Product RED Weapon Drangon 6K
SENSOR RED DRAGON 19.4 Megapixel CMOS
PIXEL ARRAY 6144 x 3160
SENSOR SIZE 30.7 mm x 15.8 mm (Diagonal: 34.5 mm)
DYNAMIC RANGE 16.5+ stops
MAX FRAME RATES 75 fps at 6K Full Format (6144 x 3160), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
REDCODE RAW ACQUISITION FORMATS 6K Full Format (6144 x 3160), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
APPLE PRORES ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 29.97 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps
AVID CODECS DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps
WEIGHT 3.3 lbs (BRAIN with Integrated Media Bay)



RED Epic-X Dragon

La caméra Epic Dragon est une camera de haute performance. Elle enregistre des images en 6K RAW à des cadences de 1 à 100 i/s en pleine résolution, avec une dynamique de 16.5 stops.
Enregistrement RED RAW sur SSD en 2K, 4K, 5K, 6K et anamorphique
Dynamique 16.5 diaphs
Vitesse jusqu’à 300 i/s en 2K
Contrôle par écran tactile 5”
Sensibilité 800 ISO
Faible encombrement
Architecture modulaire

Product RED EPIC MYSTERIUM-X
SENSOR 19 MEGAPIXEL RED DRAGON®
PIXEL ARRAY 6144 (h) x 3160 (v)
S/N RATIO 80 dB
DYNAMIC RANGE 16.5+ stops
MAX IMAGE AREA 6144 (h) x 3160 (v)
LENS COVERAGE 30.7mm (h) x 15.8mm (v) x 34.5 mm (d)
ACQUISITION FORMATS 6K RAW (2:1, 2.4:1)
5K RAW (Full Frame, 2:1, 2.4:1 and Anamorphic 2:1)
4.5K RAW (2.4:1)
4K RAW (16:9, HD, 2:1 and Anamorphic 2:1)
3K RAW (16:9, 2:1 and Anamorphic 2:1)
2K RAW (16:9, 2:1 and Anamorphic 2:1)
1080p RGB (16:9)
720p RGB (16:9)
PROJECT FRAME RATES 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 fps, all resolutions
DELIVERY FORMATS 1080p RGB 4:2:2, 720p 4:2:2 : Quicktime, JPEG, Avid AAF, MXF
1080p 4.2.0, 720p 4:2:0 : H.264, .MP4
PROGRAM OUTPUT HD-SDI Clean Feed
2K RGB, 1080p RGB or 4:2:2, 720p 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio
MONITOR OUTPUT HD-SDI and HDMI with Frame Guides and Lookaround
2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio
DIGITAL MEDIA REDMAG® 1.8″ SSD: 48GB, 64GB, 128GB, 256GB
AUDIO 2 channel, uncompressed, 24-bit, 48KHz.
Optional 4 channel, and AES/EBU digital audio
MONITORING OPTIONS RED Touch 5.0″ LCD
BOMB EVF (LCOS) High Definition Viewfinder
BOMB EVF (OLED) High Definition Viewfinder
REMOTE CONTROL REDLINK Wireless, Ethernet, RS232, GPI Trigger
WEIGHT 5 lbs (Body only)
CONSTRUCTION Aluminum Alloy
TEMPERATURE RANGES Operating Range: 0°C to 40°C (32°F to 104°F) Storage Range: –20°C to 50˚°C (–4°F to 122°F)

Moniteur LCD 5.0” Red
Viseur Red Bomb
Red Swappack
Lecteur Red Station Redmag 1.8”
4 Redmag 1.8” SSD 128Gb
Module Epic Pro I/O
Module +1
Redmote Red Epic
Carte Red Rocket en boitier avec port Thuderbold
Monture Red Motion TI PL
Viseur EVF Bomb Oled
