ARRI Alexa Mini LF

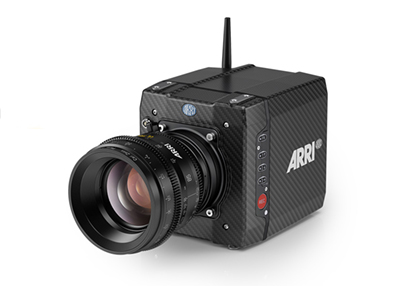

ARRI Alexa Mini

Compact, lightweight and self-contained, the ARRI ALEXA Mini is a versatile additional tool in the ALEXA camera range. Crews will find that the ALEXA Mini perfectly complements their ALEXA shooting kit, eliminating the complications of working with third-party cameras for specialized shots and keeping everything within a single system that is trusted all over the world.
The symmetrical design permits filming in any orientation, including upside-down and in portrait mode, while multiple accessory points enable highly creative mounting solutions. In addition, the ALEXA Mini’s interchangeable lens mount can be replaced with any of those designed for the ARRI AMIRA, allowing the use of B4 video and EF mount stills lenses.
Viewfinder AlexaMini (MVF-1)
Lightweight adapter plate (MAP-1)
Adapter plate avec support de tiges Ø15 (MAP-2)
Bridge plate adapter (BPA-4)
Side bracket (MSB-1)
Crosse d’épaule (CSP-1)

Lecteur de cartes CFast en USB3

Moniteur 5″ Transvideo Starlite/Arri
Licence Look Library
Licence ArriRaw
Licence 4 :3

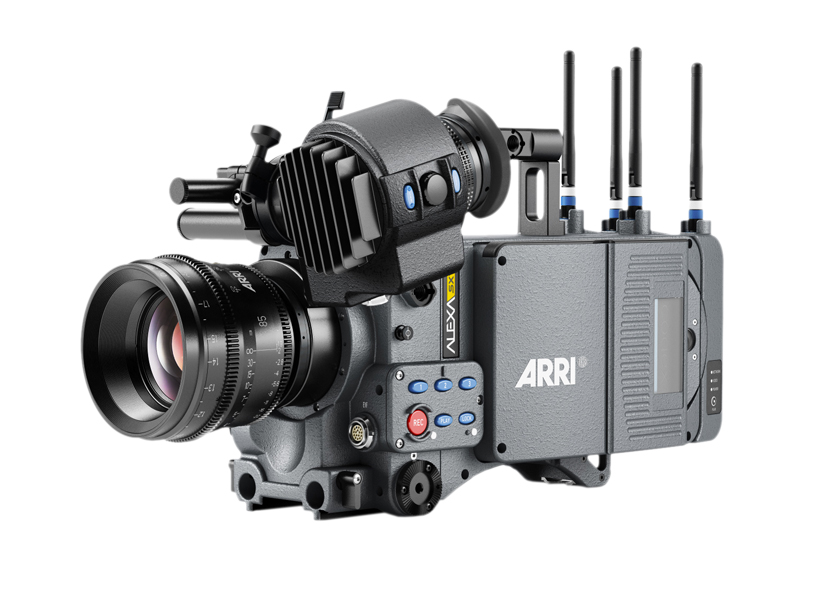

Based on this proven technology is the ALEXA SXT W: It has a built-in video transmitter which makes the camera smaller and lighter than it would be with an external transmitter. It also means fewer cables around the camera and fewer associated problems, since cable failure is by far the most common technical hitch on set. Camera setup and power-up are quicker, and productions are able to move faster. https://www.arri.com/alexa-sxt-w
Viewfinder AlexaMini (MVF-1)
Bridgeplate Arri BP-12
2 Tiges acier 19mm
Carte SD
Epaulière Arri Alexa
Monture arrière V-lock
Viseur Arri EVF-1
Moniteur 5″ Transvideo Starlite/Arri
SXR Capture Drives
SXR Capture Drive Dock (TB)
SXR Adapter
CFast 2.0 Adapter 2
FSND Filter Set (Full)
Low Mode Support (LMS-3)

ARRI Alexa Plus XR

ARRI Alexa Plus

The ALEXA Plus adds integrated wireless remote control, the ARRI Lens Data System (LDS), additional outputs, lens synchronization for 3D, and built-in position and motion sensors. It shares ALEXA’s image performance, simplicity of operation, reliability in extreme environments and versatility of workflow, and is available either as part of a complete camera package or as an upgrade for the original ALEXA.
LDS incorporé
WLCS 3 voies incorporé
>800 EI base sensitivity for beautiful images on night shoots and in low-light conditions.
14 stops of latitude to capture every detail, from the brightest highlights to the darkest shadows.
Natural colour rendition gives you rich, vibrant pictures and pleasing skin tones.
Excellent colour separation makes compositing effortless.
Very low noise guarantees flawless results, even on the big screen.

Product Alexa
Camera Type 35 format film-style digital camera.
Sensor Type 35 format ALEV III CMOS with Dual Gain Architecture (DGA).
Frame Rate 0.75 – 60 fps, adjustable with 1/1000 fps precision.
Exposure Index 800 EI base sensitivity, adjustable from 160 to 2560 EI.
Exposure Latitude > 13 stops
White Balance 2,000 to 11,000 degrees Kelvin, adjustable in 100 degree steps, presets of: 3200 (tungsten), 4300 (fluorescent), 5600 (daylight), 7000 (daylight cool); also green/magenta shift correction.
Mode Dimensions Aspect Ratio Pixels
Capture 23.760 x 13.365 mm/0.9354 x 0.5262” 16:9 2880 x 1620
Monitoring/EVF 26.136 x 14.702 mm/1.0290 x 0.5788” 16:9 3168 x 1782
Sound Level Under 20 dB(A)
Power Accepts 12 to 36 V DC, 90 W power draw in typical use recording to SxS cards.
6.2 kg/13.7 lbs body only
6.9 kg/15.2 lbs body, viewfinder, VMB-1 and cable
Length 332 mm/12.95” body with PL mount
Width 153 mm/6.02” body only
Height 158 mm/6.22” body only
Environmental Working temperature: -20 degrees C to +45 degrees C. Splash and dust proof through sealed electronics. System cooling through radiator/single fan in back ventilation shaft.
Lens Mount PL Mount w/o LDS. Super 35 centered.
Flange Focal Depth Depth 52.00 mm nominal
Shutter Electronic shutter, adjustable from 5.0° to 359.0° with 1/10 degrees precision.
Viewfinder Fast display, electronic colour viewfinder with a 1280 x 784 F-LCOS micro display and auto-calibrating, temperature controlled ARRI LED illumination. Customisable frame lines, peripheral viewing area and camera status. Image can be flipped for use on left or right side of camera.
Control Camera right: main user interface with transflective colour screen and illuminated buttons.
Camera left: operator interface with 3 assignable buttons.
Electronic Viewfinder EVF-1: viewfinder and basic camera settings, ZOOM (2.25x pixel to pixel magnification) and EXP (exposure assist) buttons.
In-camera Recording Apple QuickTime/ProRes 1080p .mov files with embedded 2 channel audio and additional metadata xml-files, recording to SxS memory cards. Capacity on a 32 GB SxS card at 24 fps: 20 minutes of Apple ProRes 422 (HQ) or 15 minutes of Apple ProRes 4444.
Maximum recording frame rate depends on codec chosen and transfer speed of memory card.
Recording Outputs Uncompressed ARRIRAW or uncompressed HD video with embedded audio and metadata. Recording ARRIRAW requires an ARRIRAW T-Link certified recorder.HD video output: 1920 x 1080 4:4:4 RGRGB or 4:2:2 YCbCr, Log C or ITU Rec 709, legal or extended range, with or without a user look applied. Recording frame rates other than HD standard (23.976, 24, 25, 29.97, 30, 50, 59.94,60 fps) requires a recorder with Variframe support.
Monitor Output HD video output: 1920 x 1080, 4:2:2 YCbCr, with or without a user look applied.
Processing 16 bit image processing
Audio 2 channel, line level balanced audio input, 24 bit/48 kHz A/D conversion.
SD Cards SD card stores camera setup files, look files, still grabs (jpg, tiff, dpx), frame line files, production info, log files, test images and firmware updates.

Bridgeplate Arri BP-12
2 Tiges acier 19mm
Carte SD
Epaulière Arri Alexa
Monture arrière V-lock
Viseur Arri EVF-1
5 cartes 32Go
Câble Arri KC 153S Alexa ETH
Plaque low-mode
High speed control
