Objectifs ZEISS/ARRI Ultra Prime

Ultra Prime	Type	Aperture	Close Focus (5)	Length	Front diameter	Weight	Horizontal angle of view	Horizontal angle of view	Horizontal angle of view
–	–	–	–	–	–	–	ANSI Super 35 (1)	DIN Super 35 (2)	Normal 35 (3)
–	–	–	–	–	–	–	l’=12.45mm (4)	l’=12.00mm (4)	l’=11.00mm (4)
16mm/T1.9	Distagon T*	T1.9 to T22	0.25m / 1′	94mm / 3.7″	95 mm / 3.7″	1.2 kg / 2.6 lbs	75.2°	75.6°	70.8°
20mm/T1.9	Distagon T*	T1.9 to T22	0.28m / 1′	91mm / 3.6″	95 mm / 3.7″	1.2 kg / 2.6 lbs	65.0°	62.8°	58.4°
24mm/T1.9	Distagon T*	T1.9 to T22	0.3m / 1′	91mm / 3.6″	95 mm / 3.7″	1.0 kg / 2.2 lbs	55.8°	54.2°	50.2°
32mm/T1.9	Distagon T*	T1.9 to T22	0.35m / 1 1/4′	91mm / 3.6″	95 mm / 3.7″	1.1 kg / 2.4 lbs	43.0°	41.6°	38.2°
40mm/T1.9	Distagon T*	T1.9 to T22	0.38m / 1 1/4′	91mm / 3.6″	95 mm / 3.7″	1.0 kg / 2.2 lbs	34.7°	33.2°	30.6°
50mm/T1.9	Planar T*	T1.9 to T22	0.6m / 2′	91mm / 3.6″	95 mm / 3.7″	1.0 kg / 2.2 lbs	27.2°	26.2°	24.0°
85mm/T1.9	Planar T*	T1.9 to T22	0.9 m / 3′	91mm / 3.6″	95 mm / 3.7″	1.2 kg / 2.6 lbs	17.1°	16.5°	15.2°
100mm/T1.9	Sonnar T*	T1.9 to T22	1m / 3 1/4′	91mm / 3.6″	95 mm / 3.7″	1.2 kg / 2.6 lbs	13.9°	13.7°	12.6°
(1) Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24.9mm x 18.7mm / 0.980″ x 0.7362″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (2) Horizontal angle of view for a DIN Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24mm x 18mm / 0.944″ x 0.7087″). Ground glasses available for ARRIFLEX 235 and all 435 and 535 models. (3) Horizontal angle of view for a Normal 35 Academy camera aperture (aspect ratio 1:1.37, dimensions 22mm x 16mm / 0.8661″ x 0.6299″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (4) l’ is the radius of the image circle needed for the respective format. It is the same as the distance from the image center to a corner. ‘ (5) Close focus is measaured from the film plane. T* is the trademark for the special Zeiss anti-reflex lens coating that reduces veiling glare and other reflections

Ultra Prime	Type	Aperture	Close Focus (5)	Length	Front diameter	Weight	Horizontal angle of view	Horizontal angle of view	Horizontal angle of view
–	–	–	–	–	–	–	ANSI Super 35 (1)	DIN Super 35 (2)	Normal 35 (3)
–	–	–	–	–	–	–	l’=12.45mm (4)	l’=12.00mm (4)	l’=11.00mm (4)
10mm/T2.1		T2.1 to T22	0.35 m / 14″	143 mm / 5.63″	156 mm / 6.1″	2.9 kg / 6.4 lbs	102.1°
14mm/T1.9	Distagon T*	T1.9 to T22	0.22m / 3/4′	112mm / 4.4″	114mm / 4.5″	1.8kg / 4.0lbs	82.6°	80.6°	75.6°
28mm/T1.9	Distagon T*	T1.9 to T22	0.28m / 1′	91mm / 3.6″	95mm / 3.7″	1.0kg / 2.2lbs	48.4°	46.8°	43.2°
65mm/T1.9	Planar T*	T1.9 to T22	0.65m / 2 1/4′	91mm / 3.6″	95mm / 3.7″	1.1kg / 2.4lbs	21.8°	21.0°	19.2°
135mm/T1.9	Sonnar T*	T1.9 to T22	1.5m / 5′	119mm / 4.7″	95mm / 3.7″	1.6kg / 3.5lbs	10.5°	10.2°	9.3°
180mm/T1.9	Sonnar T*	T1.9 to T22	2.6m / 8 1/2′	166mm / 6.5″	114mm / 4.5″	2.6kg / 5.7lbs	7.9°	7.6°	7.0°
(1) Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24.9mm x 18.7mm / 0.980″ x 0.7362″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (2) Horizontal angle of view for a DIN Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24mm x 18mm / 0.944″ x 0.7087″). Ground glasses available for ARRIFLEX 235 and all 435 and 535 models. (3) Horizontal angle of view for a Normal 35 Academy camera aperture (aspect ratio 1:1.37, dimensions 22mm x 16mm / 0.8661″ x 0.6299″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (4) l’ is the radius of the image circle needed for the respective format. It is the same as the distance from the image center to a corner. ‘ (5) Close focus is measaured from the film plane. T* is the trademark for the special Zeiss anti-reflex lens coating that reduces veiling glare and other reflections

Technical Information

18 Sep 2008 –	Zeiss Depth of field tables for Ultra Prime Lenses in meter Download (pdf, 672 KB)
18 Sep 2008 –	Zeiss Depth of field tables for Ultra Prime Lenses in feet Download (pdf, 503 KB)

Objectifs ZEISS/ARRI Master Prime

Master Prime	Type	Aperture	Close Focus (5)	Length	Front diameter	Weight	Horizontal angle of view	Horizontal angle of view	Horizontal angle of view
–	–	–	–	–	–	–	ANSI Super 35 (1)	DIN Super 35 (2)	Normal 35 (3)
–	–	–	–	–	–	–	l’=12.45mm (4)	l’=12.00mm (4)	l’=11.00mm (4)
18mm/T1.3	Distagon T* XP	T1.3 to T22	0.35 m / 14″	205 mm / 8″	114 mm / 4.5″	2.2 kg / 4.8 lbs	70.6°	68.6°	64.0°
25mm/T1.3	Distagon T* XP	T1.3 to T22	0.35 m / 14″	205 mm / 8″	114 mm / 4.5″	2.3 kg / 5.1 lbs	53.8°	52.0°	48.2°
32mm/T1.3	Distagon T* XP	T1.3 to T22	0.35 m / 14″	205 mm / 8″	114 mm / 4.5″	2.3 kg / 5.1 lbs	43.6°	42.0°	38.8°
35mm/T1.3	Distagon T* XP	T1.3 to T22	0.35 m / 14″	205 mm / 8″	114 mm / 4.5″	2.2 kg / 4.8 lbs	39.4°	38.0°	35.0°
40mm/T1.3	Distagon T* XP	T1.3 to T22	0.40 m / 16″	205 mm / 8″	114 mm / 4.5″	2.3 kg / 5.1 lbs	34.8°	33.6°	31.0°
50mm/T1.3	Planar T* XP	T1.3 to T22	0.50 m / 20″	205 mm / 8″	114 mm / 4.5″	2.7 kg / 5.9 lbs	28.2°	27.2°	25.0°
75mm/T1.3	Sonnar T* XP	T1.3 to T22	0.80 m / 2’9″	205 mm / 8″	114 mm / 4.5″	2.8 kg / 6.2 lbs	18.8°	18.2°	16.6°
100mm/T1.3	Sonnar T* XP	T1.3 to T22	1.00 m / 3’6″	205 mm / 8″	114 mm / 4.5″	2.9 kg / 6.4 lbs	14.2°	13.8°	12.6°
(1) Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24.9mm x 18.7mm / 0.980″ x 0.7362″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (2) Horizontal angle of view for a DIN Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24mm x 18mm / 0.944″ x 0.7087″). Ground glasses available for ARRIFLEX 235 and all 435 and 535 models. (3) Horizontal angle of view for a Normal 35 Academy camera aperture (aspect ratio 1:1.37, dimensions 22mm x 16mm / 0.8661″ x 0.6299″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (4) l’ is the radius of the image circle needed for the respective format. It is the same as the distance from the image center to a corner. (5) Close focus is measured from the film plane.T* XP is the trademark for the improved Zeiss anti-reflex lens coating that reduces veiling glare and other reflections. XP stands for extended performance.

Master Prime	Type	Aperture	Close Focus (5)	Length	Front diameter	Weight	Horizontal angle of view	Horizontal angle of view	Horizontal angle of view
–	–	–	–	–	–	–	ANSI Super 35 (1)	DIN Super 35 (2)	Normal 35 (3)
–	–	–	–	–	–	–	l’=12.45mm (4)	l’=12.00mm (4)	l’=11.00mm (4)
150mm/T1.3	Sonnar T* XP	T1.3 to T22	1.50 m / 4’11 »	262 mm / 10.3″	134 mm / 5.3″	4.0 kg / 8.8 lbs	9.6°	9.3°	8.5°
1) Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24.9mm x 18.7mm / 0.980″ x 0.7362″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (2) Horizontal angle of view for a DIN Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24mm x 18mm / 0.944″ x 0.7087″). Ground glasses available for ARRIFLEX 235 and all 435 and 535 models. (3) Horizontal angle of view for a Normal 35 Academy camera aperture (aspect ratio 1:1.37, dimensions 22mm x 16mm / 0.8661″ x 0.6299″). Ground glasses available for ARRICAM, ARRIFLEX 235 and all 435 and 535 models. (4) l’ is the radius of the image circle needed for the respective format. It is the same as the distance from the image center to a corner. (5) Close focus is measured from the film plane.T* XP is the trademark for the improved Zeiss anti-reflex lens coating that reduces veiling glare and other reflections. XP stands for extended performance.

Technical Information

21 Feb 2010 –	ARRI-ZEISS Master Prime Lenses – Depth-of-field Tables Download (pdf, 3.2 MB)
18 Sep 2008 –	Technical Notes P-1035, Setting the Unit of Measurement on Lens Data Displays when Using Master Prime Lenses Download (pdf, 3 MB)

Objectifs ZEISS/ARRI Super Speed

Série
Hors-Série

Super Speed	Aperture	Close Focus	Length	Front diameter	Weight
18 mm/T1.3	T1.3 to T16	0.25 m / 10″	90 mm	80 mm	1,4 kg
25 mm/T1.3	T1.3 to T16	0.25 m / 10″	75 mm	80 mm	1,1 kg
35 mm/T1.3	T1.3 to T16	0.35 m / 14″	75 mm	80 mm	1,0 kg
50 mm/T1.3	T1.3 to T16	0.70m / 2’4″	75 mm	80 mm	0,9 kg
85 mm/T1.3	T1.3 to T16	0.90 m / 3’	65 mm	80 mm	1,3 kg

Super Speed	Aperture	Close Focus	Length	Front diameter	Weight
65 mm/T1.3	T1.3 to T16

Objectifs ZEISS/ARRI Standard Prime

Hors-Série

Standard Prime	Aperture	Close Focus	Length	Front diameter	Weight
14 mm/T2.1
100 mm/T2.1
135 mm/T2.1

Objectifs ZEISS/ARRI Macro

Hors-Série

Macro	Aperture	Close Focus	Length	Front diameter	Weight	AOV
24 mm/T2.1	T2.1 to T22
50 mm/T3	T3 to T22
200 mm/T4.3	T4.3 to T32

LEICA Summicron T2.0

Série

LEICA	Aperture	Close Focus	Length	Front diameter	Weight	Focus rotation
18 mm/T2.0	T2.0 to T22	0.3m / 1′	101 mm / 4″	95mm / 3.7”	1.3 kg / 2.9 lb	300°
21 mm/T2.0	T2.0 to T22	0.3m / 1′	101 mm / 4″	95mm / 3.7”	1.3 kg / 2.9 lb	300°
25 mm/T2.0	T2.0 to T22	0.3m / 1′	101 mm / 4″	95mm / 3.7”	1.5 kg / 3.4 lb	300°
29 mm/T2.0	T2.0 to T22	0.3m / 1′	101 mm / 4″	95mm / 3.7”	1.3 kg / 3.0 lb	300°
35 mm/T2.0	T2.0 to T22	0.36m / 1’2”	101 mm / 4″	95mm / 3.7”	1.3 kg / 2.9 lb	300°
50 mm/T2.0	T2.0 to T22	0.6m / 2′	101 mm / 4″	95mm / 3.7”	1.5 kg / 3.2 lb	300°
75 mm/T2.0	T2.0 to T22	0.8m / 2’7”	101 mm / 4″	95mm / 3.7”	1.2 kg / 2.7 lb	300°
100 mm/T2.0	T2.0 to T22	1m / 3’3”	101 mm / 4″	95mm / 3.7”	1.2 kg / 2.7 lb	300°
135 mm/T2.0	T2.0 to T22	1.5m / 5’	118 mm / 4.6″	95mm / 3.7”	1.8 kg / 4.1 lb	300°

LEICA Summilux T1.4

Série

LEICA	Aperture	Close Focus	Length	Front diameter	Weight	Focus rotation
18 mm/T2.0	T1.4 to T22	0.35m / 1’2”	5.6” / 142 mm	95 mm / 3.7”	1.6 kg / 3.6 lb	300°
21 mm/T2.0	T1.4 to T22	0.31m / 1’0”	5.6” / 142 mm	95 mm / 3.7”	1.6 kg / 3.6 lb	300°
25 mm/T2.0	T1.4 to T22	0.31m / 1’0”	5.6” / 142 mm	95 mm / 3.7”	1.8 kg / 4.0 lb	300°
29 mm/T2.0	T1.4 to T22	0.46m / 1’6”	5.6” / 142 mm	95 mm / 3.7”	1.7 kg / 3.7 lb	300°
35 mm/T2.0	T1.4 to T22	0.36m / 1’2”	5.6” / 142 mm	95 mm / 3.7”	1.6 kg / 3.6 lb	300°
40 mm/T2.0	T1.4 to T22	0.41m / 1’4”	5.6” / 142 mm	95 mm / 3.7”	1.6 kg / 3.6 lb	300°
50 mm/T2.0	T1.4 to T22	0.5m / 1’8”	5.6” / 142 mm	95 mm / 3.7”	1.8 kg / 3.9 lb	300°
65 mm/T2.0	T1.4 to T22	0.46m / 1’6”	5.6” / 142 mm	95 mm / 3.7”	1.7 kg / 3.7 lb	300°
75 mm/T2.0	T1.4 to T22	0.7m / 2’3”	5.6” / 142 mm	95 mm / 3.7”	1.6 kg / 3.5 lb	300°
100 mm/T2.0	T1.4 to T22	0.9m / 2’11”	5.6” / 142 mm	95 mm / 3.7”	1.6 kg / 3.5 lb	300°

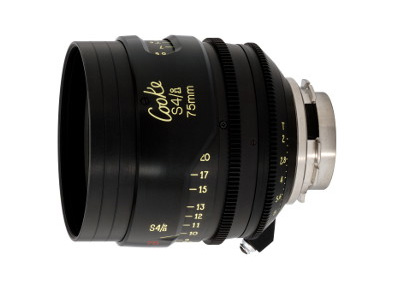

Objectifs COOKE S4/i

Série
Hors-Série

Cooke S4/i	Aperture	Close Focus	Length	Front diameter	Weight	AOV
18 mm/T2	T2 to T22	0.25 m / 9″	64 mm / 2.5″	110 mm	1.75 kg / 3.85 lbs	80°
25 mm/T2	T2 to T22	0.25 m / 9″	64 mm / 2.5″	110 mm	1.6 kg / 3.5 lbs	62°
32 mm/T2	T2 to T22	0.325 m / 12″	152 mm / 6″	110 mm	1.85 kg / 4.0 lbs	50°
40 mm/T2	T2 to T22	0.45 m / 16″	216 mm / 8.5″	110 mm	2.00 kg / 4.4 lbs	41°
50 mm/T2	T2 to T22	0.55 m / 20″	330 mm / 13″	110 mm	1.5 kg / 3.3 lbs	34°
65 mm/T2	T2 to T22	0.70 m / 27″	453 mm / 19.2″	110 mm	1.6 kg / 3.55 lbs	26°
75 mm/T2	T2 to T22	0.80 m / 30″	584mm / 23″	110 mm	1.75 kg / 3.85 lbs	22°
100 mm/T2	T2 to T22	0.95 m / 36″	724mm / 28.5″	110 mm	2.00 kg / 4.4 lbs	17°

Cooke S4/i	Aperture	Close Focus	Length	Front diameter	Weight	AOV
14 mm/T2	T2 to T22	0.25 m / 9″	50 mm / 2″	110 mm	2.2 kg / 4.8 lbs	94°
16 mm/T2	T2 to T22	0.25 m / 9″	47 mm / 2″	110 mm	2.45 kg / 5.40 lbs	86°
21 mm/T2	T2 to T22	0.25 m / 9″	85 mm / 2.5″	110 mm	2.0 kg / 4.4 lbs	71°
135 mm/T2	T2 to T22	0.85 m / 33″	564 mm / 20.7″	110 mm	2.25 kg / 4.95 lbs	13°
150 mm/T2	T2 to T22	1.05 m / 42″	841 mm / 33.8″	125 mm	3.5 kg / 7.7 lbs	11.5°
180 mm/T2	T2 to T22	13 m / 51″	1063 mm / 41.7″	136 mm	4.3 kg / 9.45 lbs	9.5°

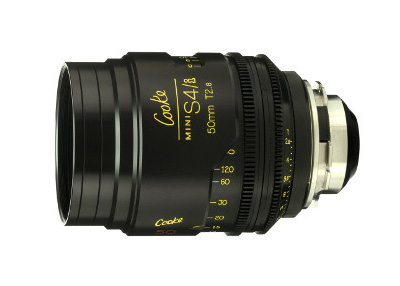

Objectifs COOKE Mini S4/i

Série

Cooke Mini S4/i	Aperture	Close Focus	Length	Front diameter	Weight	AOV
18 mm/T2.8	T2.8 to T22	0.25 m / 10″	120 mm / 4.72″	110 mm / 4.33″	1.3 kg / 2.86 lbs	80°
25 mm/T2.8	T2.8 to T22	0.25 m / 10″	106 mm / 4.17″	87 mm / 3.43″	1.4kg / 3.08 lbs	62°
32 mm/T2.8	T2.8 to T22	0.30 m / 12″	110 mm / 4.33″	87 mm / 3.43″	1.6 kg / 3.52 lbs	50°
50 mm/T2.8	T2.8 to T22	0.50 m / 20″	110 mm / 4.33″	87 mm / 3.43″	1.5 kg / 3.30 lbs	34°
75 mm/T2.8	T2.8 to T22	0.75 m / 30″	137mm / 5.39″	87 mm / 3.43″	1.6 kg / 3.52 lbs	22°
100 mm/T2.8	T2.8 to T22	0.90 m / 36″	137mm / 5.39″	87 mm / 3.43″	1.6 kg / 3.52 lbs	17°

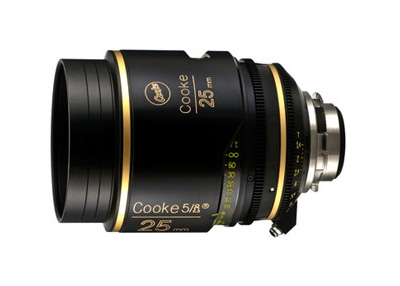

Objectifs COOKE 5/i

Série

Cooke 5/i	Aperture	Close Focus	Length	Front diameter	Weight	AOV
18 mm/T1.4	T1.4 to T22	0.35 m / 14″	171 mm / 6.73″	110 mm / 4.33″	3.03 kg / 6.67 lbs	79.3°
25 mm/T1.4	T1.4 to T22	0.35 m / 14″	177 mm / 6.97″	110 mm / 4.33″	2.98 kg / 6.56 lbs	61.9°
32 mm/T1.4	T1.4 to T22	0.35 m / 14″	177 mm / 6.97″	110 mm / 4.33″	2.78 kg / 6.12 lbs	50.5°
40 mm/T1.4	T1.4 to T22	0.40 m / 16″	177 mm / 6.97″	110 mm / 4.33″	2.76 kg / 6.07 lbs	41.0°
50 mm/T1.4	T1.4 to T22	0.50 m / 20″	177 mm / 6.97″	110 mm / 4.33″	3.23 kg / 7.11 lbs	33.7°
65 mm/T1.4	T1.4 to T22	0.60 m / 24″	177 mm / 6.97″	110 mm / 4.33″	3.08 kg / 6.78 lbs	26.1°
75 mm/T1.4	T1.4 to T22	0.65 m / 27″	177 mm / 6.97″	110 mm / 4.33″	2.99 kg / 6.58 lbs	22.6°
100 mm/T1.4	T1.4 to T22	0.75 m / 30″	177 mm / 6.97″	110 mm / 4.33″	2.89 kg / 6.36 lbs	17.1°
135 mm/T1.4	T1.4 to T22	0.65 m / 27″	218 mm	136 mm	5,08 kg / 11.2 lbs.

Objectifs LEITZ PRIME T1.8

Série

LEITZ PRIME T1.8 : 18 / 21 / 25 / 29 / 35 / 40 / 50 / 75 / 100mm – Livraison de 3 focales supplémentaires (65 / 135/ 180mm) courant 2021.

More informations: https ://www.leitz-cine.com/product/leitz-prime

Leitz Prime	Aperture	Close Focus	Length	Front diameter	Weight	AOV
18 mm/T1.8	T1.8	0.35 m / 1’2″	201.5 mm / 7.9″	114 mm / 4.49″	3.2 kg / 6.61 lbs	-°
21 mm/T1.8	T1.8	0.55 m / 1’10″	183.7 mm / 7.2″	114 mm / 4.49″	2.76 kg / 4.41 lbs	-°
25 mm/T1.8	T1.8	0.55 m / 1’10″	183.7 mm / 7.2″	114 mm / 4.49″	2.8 kg / 4.41 lbs	-°
29 mm/T1.8	T1.8	0.35 m / 1’2″	183.7 mm / 7.2″	114 mm / 4.49″	2.67 kg / 4.41 lbs	-°
35 mm/T1.8	T1.8	0.45 m / 1’6″	183.7 mm / 7.2″	114 mm / 4.49″	2.87 kg / 4.41 lbs	-°
40 mm/T1.8	T1.8	0.35 m / 1’2″	183.7 mm / 7.2″	114 mm / 4.49″	2.71 kg / 4.41 lbs	-°
50 mm/T1.8	T1.8	0.47 m / 1’7″	183.7 mm / 7.2″	114 mm / 4.49″	2.7 kg / 4.41 lbs	-°
75 mm/T1.8	T1.8	0.75 m / 2’2″	183.7 mm / 7.2″	114 mm / 4.49″	2.83 kg / 4.41 lbs	-°
100 mm/T1.8	T1.8	1.2 m / 3’11″	183.7 mm / 7.2″	114 mm / 4.49″	2.77 kg / 4.41 lbs.	-°
