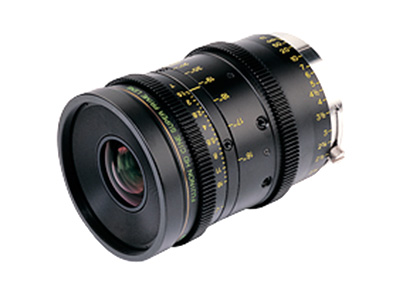

Objectifs HD FUJINON E-Series

Focal length Application T-No. Iris blades M.O.D. (1) Object dimensions (2) AFOV (3) Filter thread Focus rotation Diameter × Length Weight
8 mm 2/3″ HD Camera 1.5 11 0.4 m / 1.31 ft. 288 × 162 mm 61°52′ × 37°14′ M86 × 1 280° 95 × 144 mm 1.6 kg
12 mm 2/3″ HD Camera 1.5 11 0.4 m / 1.31 ft. 220 × 124 mm 43°34′ × 25°19′ M86 × 1 280° 95 × 144 mm 1.65 kg
16 mm 2/3″ HD Camera 1.5 11 0.4 m / 1.31 ft. 175 × 98 mm 33°22′ × 19°07′ M86 × 1 280° 95 × 144 mm 1.6 kg
20 mm 2/3″ HD Camera 1.5 11 0.45 m / 1.48 ft. 165 × 93 mm 26°58′ × 15°21′ M86 × 1 280° 95 × 144 mm 1.6 kg
34 mm 2/3″ HD Camera 1.5 11 0.4 m / 1.31 ft. 83 × 47 mm 16°03′ × 9°04′ M86 × 1 280° 95 × 144 mm 1.65 kg
40 mm 2/3″ HD Camera 1.5 11 0.5 m / 1.64 ft. 99 × 56 mm 13°40′ × 7°42′ M86 × 1 280° 95 × 144 mm 1.65 kg
54 mm 2/3″ HD Camera 1.6 11 0.6 m / 1.97 ft. 92 × 52 mm 10°09′ × 5°43′ M86 × 1 280° 95 × 144 mm 1.65 kg
(1) M.O.D. from image plane
(2) Object dimensions at M.O.D. 16 : 9 Aspect ratio
(3) Angular field of view 16 : 9 Aspect ratio

Focal length Application T-No. Iris blades M.O.D. (1) Object dimensions (2) AFOV (3) Filter thread Focus rotation Diameter × Length Weight
5 mm 2/3″ HD Camera 1.7 11 0.5 m / 1.64 ft. 591 × 332 mm 87°36′ × 56°39′ – 280° 95 × 180.5 mm 2.2 kg
(1) M.O.D. from image plane
(2) Object dimensions at M.O.D. 16 : 9 Aspect ratio
(3) Angular field of view 16 : 9 Aspect ratio

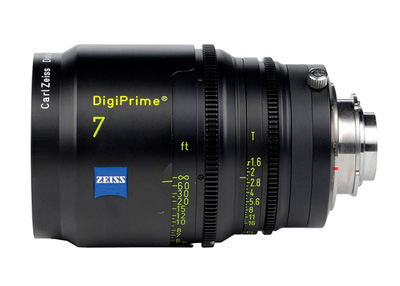

Objectifs HD ZEISS DigiPrime

Focal length T-Stop Close Focus Length Elements / Groups Image Angle 4:3 Image Angle 19:9 Focus rotation Front Diameter Weight
H V D H V D
7 mm 1.6 0.5 m
19.7”		 164mm
6.5”		 18 / 14 65.0 51.0 76.6 69.6 42.4 76.6 589° 95 mm 1550 g
3.42 lb
10 mm 1.6 0.5 m
19.7”		 164mm
6.5”		 17 / 13 48.0 37.0 58.0 52.0 30.6 58.0 308° 95 mm 1510 g
3.33 lb
14 mm 1.6 0.5 m
19.7”		 164mm
6.5”		 15 / 12 35.4 26.8 43.4 38.4 22.0 43.4 285° 95 mm 1330 g
2.93 lb
20 mm 1.6 0.5 m
19.7”		 164mm
6.5”		 15 / 11 24.8 18.8 30.8 27.0 15.4 30.8 299° 95 mm 1350 g
2.98 lb
40 mm 1.6 0.5 m
19.7”		 164mm
6.5”		 14 / 12 12.6 9.6 15.8 13.8 7.8 15.8 312° 95 mm 1440 g
3.17 lb

Focal length T-Stop Close Focus Length Elements / Groups Image Angle 4:3 Image Angle 19:9 Focus rotation Front Diameter Weight
H V D H V D
5 mm 1.9 0.5 m
19.7”		 164mm
6.5”		 19 / 13 82.0 66.0 94.2 87.0 55.8 94.2 294° 95 mm 1380 g
3.04 lb
28 mm 1.6 0.5 m
19.7”		 164mm
6.5”		 14 / 10 17.8 13.4 22.1 19.4 11.0 22.1 323° 95 mm 1420 g
3.13 lb
70 mm 1.6 0.32 m
12.6”		 194mm
7.6”		 20 / 14 7.2 5.4 9.0 7.8 4.4 9.0 310° 95 mm 1800 g
3.97 lb

Objectifs HD-EC CANON FJs

Focal length Image Format Aperture Iris Type Focus Horizontal View Angle M.O.D. Dimensions (WxHxD) Weight
5 mm 2/3″ CCD, 16:9 1.5 Manual Manual 87.7° 1.7′ (0.5m) 3.7 x 3.7 x 7.1″
(9.5 x 9.5 x 17.7 cm)		 3.3 lb
(1.5 kg)
9 mm 2/3″ CCD, 16:9 1.7 Manual Manual 56.1° 1.5′
(0.45 m)		 3.7 x 3.7 x 5.4″
(9.5 x 9.5 x 13.5 cm)		 2.4 lb
(1.1 kg)
14 mm 2/3″ CCD, 16:9 1.5 Manual Manual 37.8° 1.3′
(0.4 m)		 3.7 x 3.7 x 5.4″
(9.5 x 9.5 x 13.5 cm)		 2.4 lb
(1.1 kg)
24 mm 2/3″ CCD, 16:9 1.5 Manual Manual 22.6° 1.5′
(0.45 m)		 3.7 x 3.7 x 5.4″
(9.5 x 9.5 x 13.5 cm)		 2.4 lb
(1.1 kg)
35 mm 2/3″ CCD, 16:9 1.5 Manual Manual 15.6° 1.7′
(0.5 m)		 3.7 x 3.7 x 5.4″
(9.5 x 9.5 x 13.5 cm)		 2.4 lb
(1.1 kg)
55 mm 2/3″ CCD, 16:9 1.5 Manual Manual 10° 1.7′
(0.5 m)		 3.7 x 3.7 x 5.4″
(9.5 x 9.5 x 13.5 cm)		 2.4 lb
(1.1 kg)
